My brewing procedure is fairly simple. I perform a partial mash of about 3 pounds of grains inside over the stove and then strain them into my new kettle setup. I combine the extract and hops and boil away. It takes just about 6.5 gallons at the start in order to end up with 5+ gallons of wort in the end.

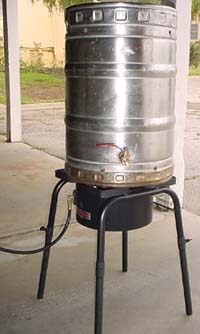

Brew Kettle
I took a donated 15.5 gallon Sankey keg and had the top cut out and a 1/2" coupling welding into the lower side.
I heat it with a nice brand new 75000 BTU cooker from Camp Chef

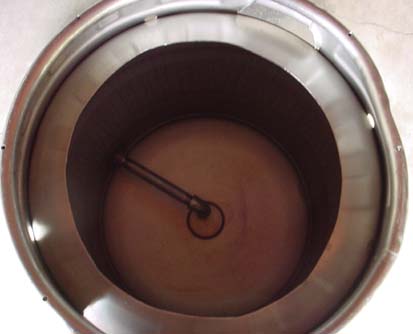

Inside Kettle
On the inside is a simple piping arrangment, and the outside has a 1/2" valve, connected to a 1/2" hose nipple.
I only use this setup to transfer cooled wort from the kettle into the fermentor. I pass the wort through a strainer on the way.
I then chill it and put it into a bucket to ferment.
